All products

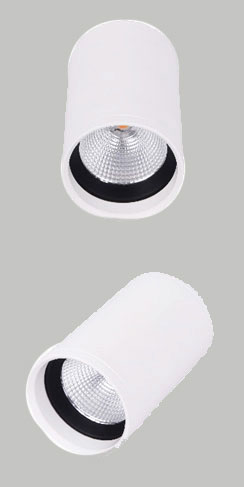

Accent LED
Luminaire type
Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Track | Surface Mounted
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
|
Luminaire type Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Track | Surface Mounted
Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V. |
|
PROFILER TRACK
Single | Three Phase Track
The single and three -circuit (for DALI dimming) power track system made of aluminum for flexible applications adapts to all retail and other areas – whether mounted horizontally or vertically, or as a suspended system. Thanks to two lengths of 1000 / 2000 mm, customized configurations can be easily put together.

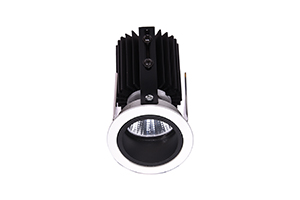

Board
Luminaire type
Adjustable spotlight, recessed – Modular; Citizen / Osram COB with low THD (<10%) LED Philips / BAG/ Fulham electronic driver. IP 20, deformed metal housing with metal frame and aluminum heat sink.
Applications
Accent/Shop Lighting, Hospitality, Reception, Foyers, Lobbies, Corridors, Halls and Restaurants.
Mounting methods
Recessed spotlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 14, 24, 36 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Deformed Metal Housing with Metal Frame, Aluminum Heat Sink for optimum heat dissipation; IP 20. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

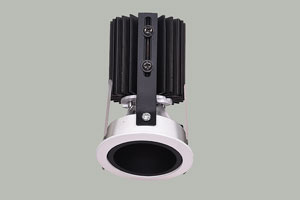

Board HS
|
Luminaire type Adjustable high-power spotlight, recessed – Modular; Citizen / Osram COB with low THD (<10%) LED Philips / BAG/ Fulham electronic driver. IP 20, deformed metal housing with metal frame and aluminum heat sink.
Applications Accent/Shop Lighting, Hospitality, Reception, Foyers, Lobbies, Corridors, Halls and Restaurants.
Mounting methods Recessed high-power modular spotlight, adjustable; for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system UV protected clear glass for bright spot light, beam angles – 12, 14, 24, 36 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Deformed Metal Housing with Metal Frame, Aluminum Heat Sink for optimum heat dissipation; IP 20. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Lance LED
Luminaire type
Recessed downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Oval Beam Angle on request for Wall Wash Option.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
LED LASER
Luminaire type
Recessed luminaire with Aluminum profile housing, CREE make COB, low THD (<10%) LED Philips / Fulham / BAG electronic Driver. IP 20.
Available: With / Without Trim
Options: Suspended & Wall washer on request
Applications
Offices, corridors. Foyers, Conference Rooms, Retail Spaces, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed.
Suspended option available on request in ‘With Trim Version’.
Optical system
UV protected clear glass diffuser, 9-degree beam angle
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 120 Lm / W (3000 K) and 125 Lm / W (4000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Aluminum profile housing, Powder Coated. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
MOSAIC LED
Luminaire type
Recessed downlighter | wall washer round; high power LED, recessed with Aluminum die cast housing and power coated reflector and low THD (<10%) Philips / BAG / Fulham electronic Driver.
Applications
Offices, Corridors, Foyers, Conference rooms, Showcases,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Wall washer option available.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
High power Citizen / Osram COB with LEDIL lens of European origin and PETA make reflector providing a beam angle of 7-10 degree.
*Available Beam angles for Wall washer – 10 / 15 / 24/ 36 and 60 Degrees.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

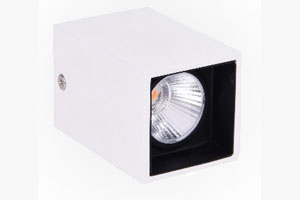

Prisma LED
|
Luminaire type Suspended / surface mounted downlighter, square; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Colour on Request.
Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Suspended / surface mounted downlight.
Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
“S” is small housing, “L” is large housing.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V
Pyra LED
|
Luminaire type Suspended / surface mounted downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Colour on Request. Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Mounting methods Suspended / surface mounted downlight. Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR. LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance. “S” – Small, “L” – Large Housing Electrical connection Mains connection is achieved via connection cable. Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V
