Luminaire type

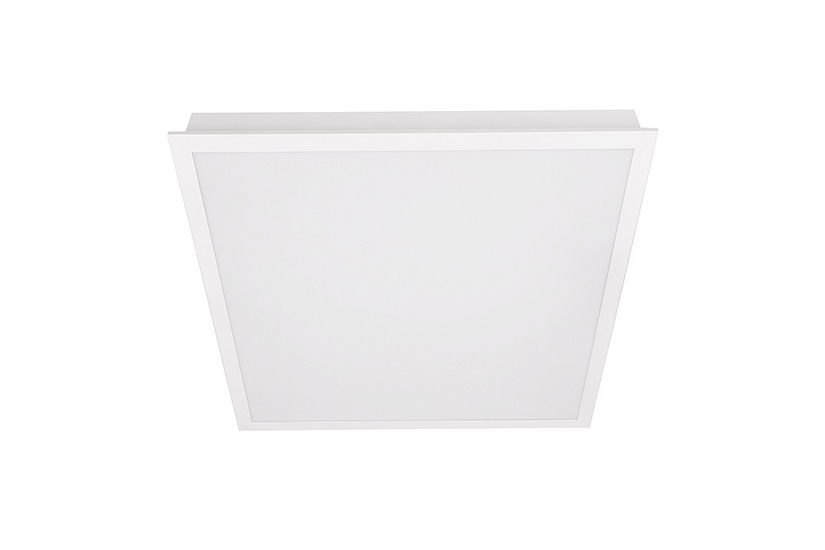

LED full panel, Back Lit square; with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing.
Applications
Workstation Areas, Halls.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham)with low THD, output short circuit and surge voltage protection, switchable | DALI | Tunable White.
Variants
Product Code |
Watts |
L X B |
Cutout L X B |
Lumen Output |
Color Temperature |
CLS–36W-RM–LED–DL-SFP |
36W |
595 mm x 595 mm |
595 mm x 595 mm |
3600 |
830 | 840 | 860 |
CLS- 160W-RM-LED-DL-FP |
160W |
1195 mm x 1195 mm |
1195 mm x 1195 mm |
16000 |
830 | 840 | 860 |
CLS-36W-RM-LED-RFP |
36 W |
295 mm x 1195 mm |
295 mm x 1195 mm |
3600 |
830 | 840 | 860 |
