Luminaire type

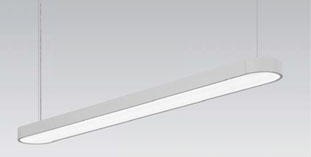

Soft Edge luminaire with end caps, Satin / micro prismatic diffuser with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Available to be configured as a system with or without spacers.
Applications
Workstation Areas, Cabins, Receptions, Conference Rooms and Halls.
Mounting methods
Suspended
Optical system
30 W Homogeneously illuminated Direct – Indirect light emission from a micro-prismatic anti-glare cover of translucent PMMA.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum Body with Micro-prismatic PMMA diffuser
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DAL
Variants
Product Code |
Watts |
L X B |
Cutout L X B |
Lumen Output |
Color Temperature |
CLS–30W-RM– SLENDER - LED |
30 W |
1390 mm X 190 mm |
- |
3000 |
830 | 840 | 860 |
