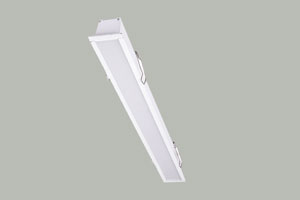

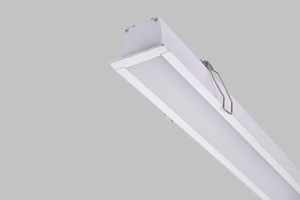

LYNUS SC LED
Luminaire type
System luminaire for serviced ceilings, with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, deformed metal housing, powder coated.
Applications
Workstation Areas, Halls with serviced ceilings – TechZone.
Mounting methods
Recessed mounted for special ceilings.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent Satin diffuser.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Deformed Metal housing, Powder-Coated, with clip-on BWF diffuser, available in single lengths of 600 mm to 2400 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

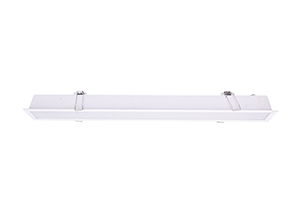

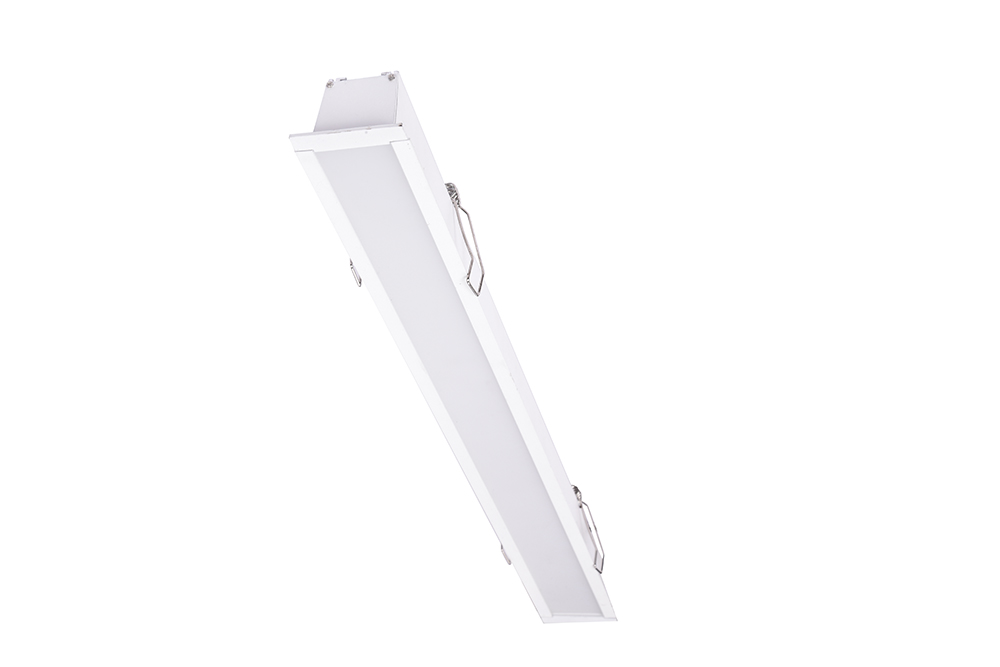

Lynus TZ
Luminaire type
System luminaire for serviced ceilings, with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, extruded aluminum anodized housing, powder coated.
Applications
Workstation Areas, Halls with serviced ceilings – TechZone.
Mounting methods
Recessed mounted for special ceilings.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent BWF diffuser.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Anodized Aluminum housing, Powder-Coated, with PMMA diffuser, available in single lengths of 600 mm to 3600 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
