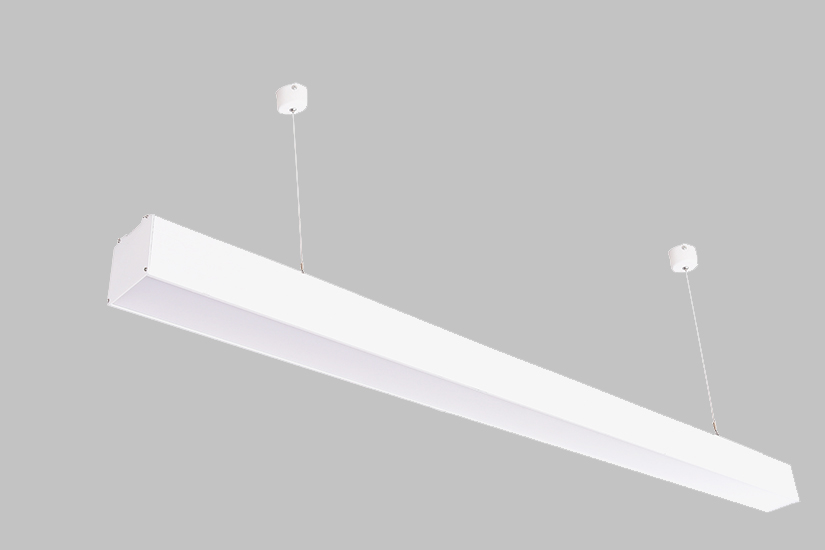

Luminaire type System luminaire for surface mounted or suspended applications with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, anodized aluminum housing, powder coated.
Applications Workstation Areas, Halls, Architectural applications.
Mounting methods Suspended / Surface mounted for Lynus 5070 / 5070 FL. / 7070.
Optical system Lynus 5070 FL – Three directional volumetric light emission. Three side cover of extruded translucent PMMA.
Lynus 5070 / 7070 - Harmonious light effect due to homogeneously illuminated light emission. Cover of clip on BWF diffuser for 5070 and cover of translucent PMMA for 7070.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm / W - 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum with PMMA diffuser, available in single lengths of 600 mm to 3600 mm for Lynus 5070 & 7070, and 600 mm to 2400 mm for Lynus 5070 FL.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Variants
Product Code |
Watts |
L X B |
H |
Lumen Output |
Color Temperature |
CLS – Lynus – 5070 |
28 W |
1200 mm x 50 mm |
70 mm |
3080 |
830 | 840 | 860 |
CLS – Lynus – 5070 FL |
28 W |
1200 mm x 50 mm |
70 mm |
2800 |
830 | 840 | 860 |
CLS-Lynus-7070 |
28 W |
1200 mm x 70 mm |
70 mm |
3080 |
830 | 840 | 860 |
