Luminaire type

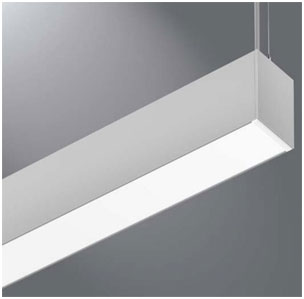

System luminaire for suspended applications with LED in areas with false ceilings and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, anodized aluminum housing, powder coated.
Applications
Workstation Areas, Cabins, Receptions, Halls and Architectural applications.
Mounting methods
Suspended Applications in areas with false ceilings.
Optical system
Lynus BD – Direct – Indirect light emission through cover of extruded translucent PMMA.
LED system
Efficient state of the art LEDs, (30 W + 15 W) Luminous efficiency of luminaire 110 Lm / W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum with PMMA diffuser, available in single lengths of 600 mm to 3600 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Variants
Product Code |
Watts |
L X B |
H |
Lumen Output |
Color Temperature |
CLS – Lynus – BD |
45 W (30 + 15) |
1200 mm x 30 mm |
85 mm |
4500 |
830 | 840 | 860 |
