Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed

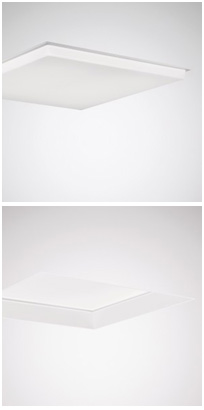

Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Variants
Product Code |
Watts |
L X B |
Cutout L X B |
Lumen Output |
Color Temperature |
CLS–36W-RM–LED–DL-V |
36W |
595 mm x 595 mm |
595 mm x 595 mm |
3600 |
830 | 840 | 860 |
CLS-36W-RM-LED-DL-S |
36 W |
595 mm x 595 mm |
595 mm x 595 mm |
3600 |
830 | 840 | 860 |
