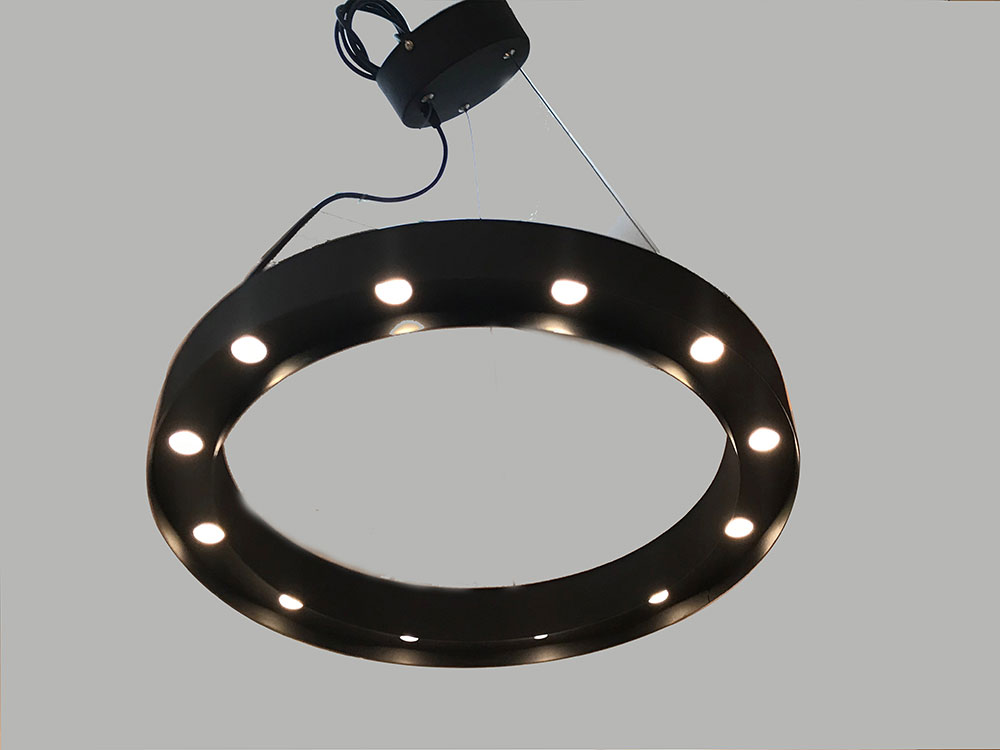

Luminaire type Recessed | suspended doughnut shaped luminaire, round in 450 | 600 | 750 mm Dia; with branded COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Please ask for sample to make cut out dia. for recessed models on site.
Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Recessed for cut-out ceiling openings | Suspended.
Optical system UV protected clear glass for bright spot light delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Deformed Metal Housing, Powder coated finish; metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Variants
Product Code |
Watts |
Dia. |
LED Details |
Efficiency |
Color Temperature |
CLS-12W-ZB-R |
12W |
450 mm |
1 W x 12 |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K - 125 Lm / W
|
830 | 840 | 860 |
CLS-15W-ZB-R |
15W |
600 mm |
1 W x 15 |
||
CLS-18W-ZB-R |
18W |
750 mm |
1 W x 18 |
||
CLS-12W-ZB-S |
12W |
450 mm |
1 W x 12 |
||
CLS-15W-ZB-S |
15W |
750 mm |
1 W x 15 |
||
CLS-18W-ZB-S |
18W |
750 mm |
1 W x 18 |
