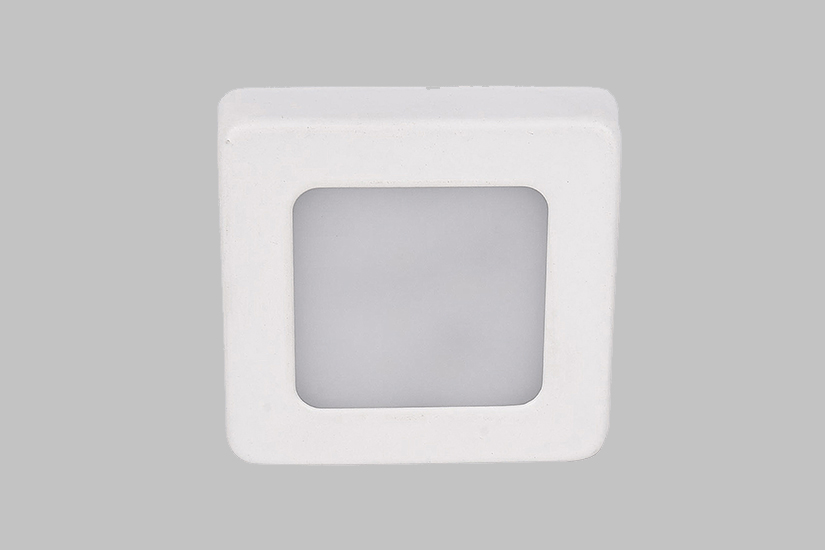

Luminaire type Surface mounted trim less downlighter, slim & square; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing and metal frame.
Applications Foyers, Lobbies, Balconies, Canopied Areas.
Mounting methods Surface mount downlight for canopied areas. Easy ceiling mounting via screws.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit housed in metal body, powder coated.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Variants
Product Code |
Watts |
L X B |
Height |
Efficiency |
Color Temperature |
CLS-8W-SM-SQ-LED |
8W |
88 mm x 88 mm |
30 mm |
3000 K - 85Lm / W | 4000 K - 95 Lm / W | 6000 K - 100 Lm / W
|
830 | 840 | 860 |
CLS-12W-SM-SQLED |
12W |
145 mm x 145 mm |
30 mm |
||
CLS-18W-SM-SQ-LED |
18W |
170 mm x 170mm |
30 mm |
||
CLS-22W-SM-SQ-LED |
22W |
220 mm x 220 mm |
30 mm |
