Astral LED
|
Luminaire type Recessed LED downlight in 300 / 450 / 600 mm Dia. with deformed aluminum housing and 750 / 900 mm Dia. in deformed metal housing, powder coated, satin diffuser with integral low THD (<10%) Philips/ BAG / Fulham electronic driver. IP 20. Applications Architectural accents, Meeting rooms, Reception rooms, Foyers, Lobbies, Corridors, Halls, Restaurants and Care homes. Mounting methods Recessed / Pendant / Surface mounted. Optical system Harmonious light effect due to homogeneously illuminated light emission across satin diffuser. LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 90 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish Deformed Metal Housing with seamless finish, with / without trim, powder coated. Satin diffuser, IP 20. Electrical connection Mains connection is achieved via connection cable. Electrical version Powered by integral SMPS based constant current electronic driver with low THD, output short circuit and surge voltage protection, switchable | DALI |
ATTIC LED
|
Luminaire type Rounded edge back lit luminaire with trim and deep recessed diffuser with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Applications Workstation Areas, Halls, Ambient Lighting.
Mounting methods Recessed in plasterboard ceilings.
Optical system Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Body with Offset PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Frizbee
Luminaire type
Recessed panel downlighter, round; LEDwithlow THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-castAluminum housing, IP 20.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham)with low THD, output short circuit safety and surge voltage protection, switchable | DALI | Tunable White. Operating voltage range 140-270 V.
FRIZBEE LED
Luminaire type
Recessed panel downlighter, round; LED with low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system
Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h,
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
LU LED
Luminaire type
Recessed downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Pane
Luminaire type
Slim Trim Recessed panel downlighter, square; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system
Luminous efficiency of luminaire 85-100 Lm/W depending on the color temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 AND Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
PLANAS LED
|
Luminaire type Surface mounted trim less downlighter, slim & square; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing and metal frame.
Applications Foyers, Lobbies, Balconies, Canopied Areas.
Mounting methods Surface mount downlight for canopied areas. Easy ceiling mounting via screws.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit housed in metal body, powder coated.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
PLATEAU LED
|
Luminaire type Surface mounted trim less downlighter, slim & round; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing and heat sink housed in a metal frame.
Applications Foyers, Lobbies, Balconies, Canopied Areas.
Mounting methods Surface mount downlight for canopied areas. Easy ceiling mounting via screws.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Luminaire body Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit, housed in a metal frame, powder coated.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
QUADRA V | QUADRA S LED
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
RETRA LED
Luminaire type
Rounded panel, Back Lit square with trim and deep recessed diffuser and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Applications
Workstation Areas, Halls and All Ambient Lighting applications.
Mounting methods
Recessed in plasterboard ceilings.
Optical system
Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum Body with Offset PMMA diffuser
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

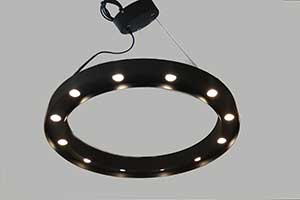

Zebron LED
|
Luminaire type Recessed | suspended doughnut shaped luminaire, round in 450 | 600 | 750 mm Dia; with branded COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Please ask for sample to make cut out dia. for recessed models on site.
Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Recessed for cut-out ceiling openings | Suspended.
Optical system UV protected clear glass for bright spot light delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Deformed Metal Housing, Powder coated finish; metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
