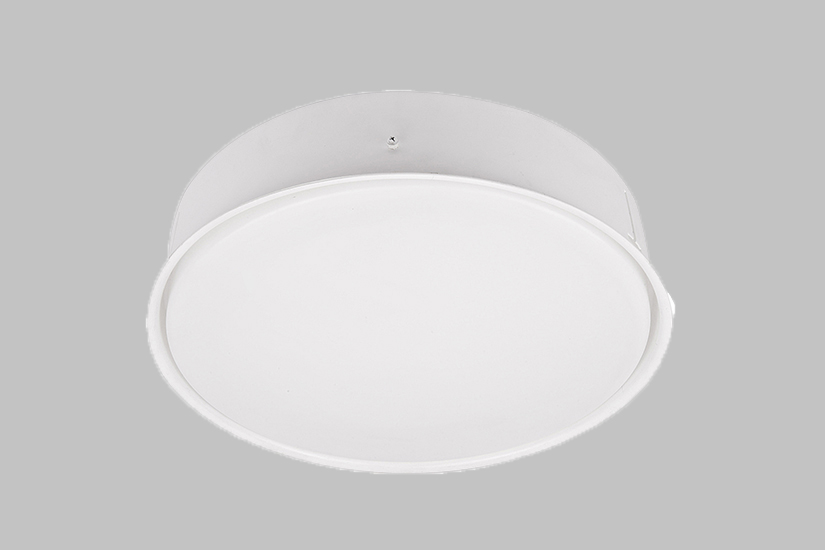

Luminaire type Recessed LED downlight in 300 / 450 / 600 mm Dia. with deformed aluminum housing and 750 / 900 mm Dia. in deformed metal housing, powder coated, satin diffuser with integral low THD (<10%) Philips/ BAG / Fulham electronic driver. IP 20. Applications Architectural accents, Meeting rooms, Reception rooms, Foyers, Lobbies, Corridors, Halls, Restaurants and Care homes. Mounting methods Recessed / Pendant / Surface mounted. Optical system Harmonious light effect due to homogeneously illuminated light emission across satin diffuser. LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 90 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish Deformed Metal Housing with seamless finish, with / without trim, powder coated. Satin diffuser, IP 20. Electrical connection Mains connection is achieved via connection cable. Electrical version Powered by integral SMPS based constant current electronic driver with low THD, output short circuit and surge voltage protection, switchable | DALI |
Variations:
Product Code |
Watts |
Dia. |
Height |
Lumen Output |
Color Temperature |
CLS- 25W- LED-M-Light |
25W |
300 mm |
100 mm |
2250 |
830 | 840 | 860 |
CLS- 36W- LED-M-Light |
36W |
450 mm |
100 mm |
3240 |
|
CLS- 48W- LED-M-Light |
48W |
600 mm |
100 mm |
4320 |
|
CLS- 75W- LED-M-Light |
75W |
750 mm |
100 mm |
6750 |
|
CLS- 90W- LED-M-Light |
90W |
900 mm |
100 mm |
8100 |
