Luminaire type

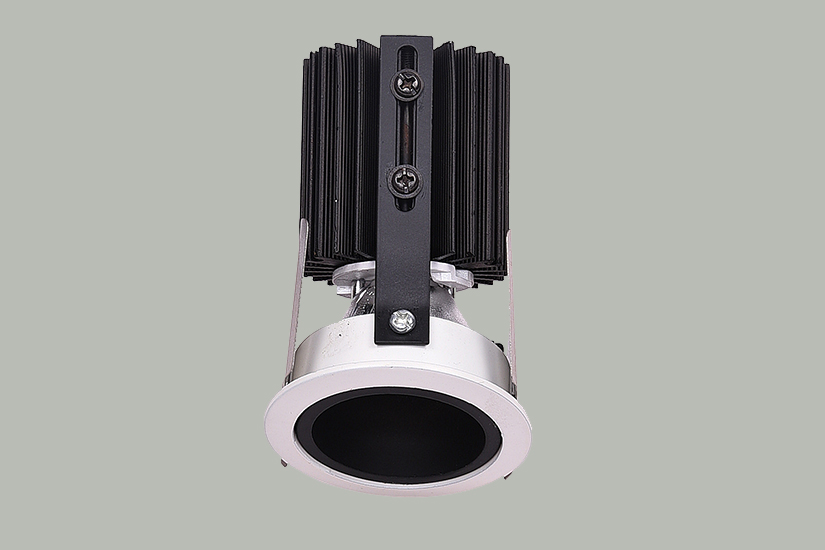

Recessed downlighter | wall washer round; high power LED, recessed with Aluminum die cast housing and power coated reflector and low THD (<10%) Philips / BAG / Fulham electronic Driver.
Applications
Offices, Corridors, Foyers, Conference rooms, Showcases,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Wall washer option available.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
High power Citizen / Osram COB with LEDIL lens of European origin and PETA make reflector providing a beam angle of 7-10 degree.
*Available Beam angles for Wall washer – 10 / 15 / 24/ 36 and 60 Degrees.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Variants
Product Code |
Watts |
Dia. |
Cut out Dia. |
Height |
Efficiency |
Color Temperature |
CLS-8W-B-DL |
8 W |
55 mm
|
45 mm
|
80mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K - 125 Lm / W |
830 | 840 | 860 |
CLS-12W-B-DL |
12 W |
|||||
CLS-15W-B-DL |
15 W |
|||||
CLS-18W-B-DL |
18 W |
|||||
CLS-12W- wall washer-DL |
12W |
75mm |
