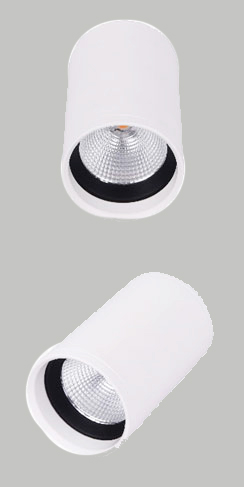

Luminaire type Suspended / surface mounted downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Colour on Request. Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Mounting methods Suspended / surface mounted downlight. Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR. LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance. “S” – Small, “L” – Large Housing Electrical connection Mains connection is achieved via connection cable. Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V
Variants
Product Code |
Watts |
Dia. |
Height |
Efficiency |
Color Temperature |
CLS-8W-PY-DL- S/L |
8W |
50 mm / 70 mm |
150 mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K - 125 Lm / W
|
830 | 840 | 860 |
CLS-12W-PY-DL – S/L |
12W |
50 mm / 70 mm |
150 mm |
||
CLS-18W-PY-DL – S / L |
18W |
70 mm / 100 mm |
150 mm |
||
CLS-24W-PY-DL – S/L |
24W |
70 mm / 100 mm |
150 mm |
