Luminaire type
Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Track | Surface Mounted
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Luminaire type Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Track | Surface Mounted
Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V. |
|

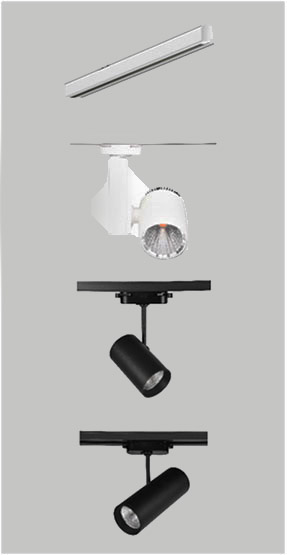

PROFILER TRACK
Single | Three Phase Track
The single and three -circuit (for DALI dimming) power track system made of aluminum for flexible applications adapts to all retail and other areas – whether mounted horizontally or vertically, or as a suspended system. Thanks to two lengths of 1000 / 2000 mm, customized configurations can be easily put together.
VARIANTS
Product Code |
Watts |
Length |
Dia. |
Efficiency |
Color Temperature |
CLS-S-PT-ED-1000 |
Single Circuit |
one meter |
|
|
|
CLS-S-PT-ED-2000 |
Single Circuit |
two meters |
|||
CLS-T-PT-DD-1000 |
Three Circuit |
one meter |
|||
CLS-T-PT-DD-2000 |
Three Circuit |
two meters |
|||
CLS-S-PT-ED-1000 |
Single Circuit |
one meter |
Accent RI
Product Code |
Watts |
Dia. |
Efficiency |
Color Temperature |
CLS-12W-ARI-TSL |
12 W |
90 mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K – 125 Lm / W |
830 | 840 | 860 |
CLS-15W-ARI-TSL |
15 W |
|||
CLS-18W-ARI-TSL |
18 W |
|||
CLS-24W-ARI-TSL |
24 W |
|||
CLS-30W-ARI-TSL |
30 W |
|||
CLS-40W-ARI-TSL |
40 W |
Accent SR
Product Code |
Watts |
Dia. |
Efficiency |
Color Temperature |
CLS-6W-ASR-TSL |
6 W |
55 mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K – 125 Lm / W |
830 | 840 | 860 |
CLS-10W-ASR-TSL |
10 W |
|||
CLS-12W-ASR-TSL |
12 W |
Accent LR
Product Code |
Watts |
Cut out Dia. |
Efficiency |
Color Temperature |
CLS-9W-ALR-TSL |
9 W |
90 mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K – 125 Lm / W |
830 | 840 | 860 |
CLS-12W-ALR-TSL |
12 W |
|||
CLS-15W-ALR-TSL |
15W |
|||
CLS-18W-ALR-TSL |
18 W |
|||
CLS-9W-ALR-TSL |
9 W |
