Luminaire type

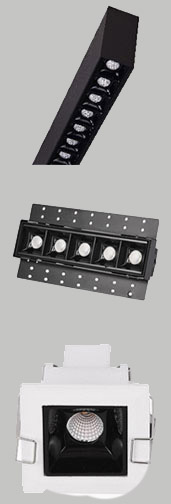

Recessed luminaire with Aluminum profile housing, CREE make COB, low THD (<10%) LED Philips / Fulham / BAG electronic Driver. IP 20.
Available: With / Without Trim
Options: Suspended & Wall washer on request
Applications
Offices, corridors. Foyers, Conference Rooms, Retail Spaces, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed.
Suspended option available on request in ‘With Trim Version’.
Optical system
UV protected clear glass diffuser, 9-degree beam angle
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 120 Lm / W (3000 K) and 125 Lm / W (4000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Aluminum profile housing, Powder Coated. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Variants
Product Code |
Watts |
L X B |
Cut-Out |
Efficiency |
Color Temperature |
CLS-LL-LB451-T – 2 W x 1 |
2 W |
45 mm x 45 mm |
35 mm x 35 mm |
3000 K - 120 Lm / W 4000 K - 125 Lm / W |
830 | 840 |
CLS-LL-LB452-T– 2 W x 2 |
4 W |
75 mm x 45 mm |
65 mm x 35 mm |
830 | 840 |
|
CLS-LL-LB453-T – 2 W x 5 |
10 W |
148 mm x 45 mm |
138 mm x 35 mm |
830 | 840 |
|
CLS-LL-LB455 – T - 2W x 10 |
20 W |
282 mm x 45 mm |
270 mm x 35 mm |
830 | 840 |
|
CLS-LL-LB456-TL – 2 W x 2 |
4 W |
- |
66 x 38 mm |
830 | 840 Wall Washer |
|
CLS-LL-LB457 – TL - 2W x 5 |
10 W |
- |
140 mm x 38 mm |
830 | 840 |
|
CLS-LL-LB458 – TL- 2W x 10 |
20 W |
- |
272 mm x 38 mm |
830 | 840 |
|
CLS-LL-SL-558-H-40W |
40W |
862mm x 105 mm |
75 mm (H) |
830 | 840 |
|
CLS-LL-LB454-TWW – 2 W x 5 D |
10 W |
170 mm x 88 mm |
150 mm x 170mm |
830 | 840 |
