Luminaire type

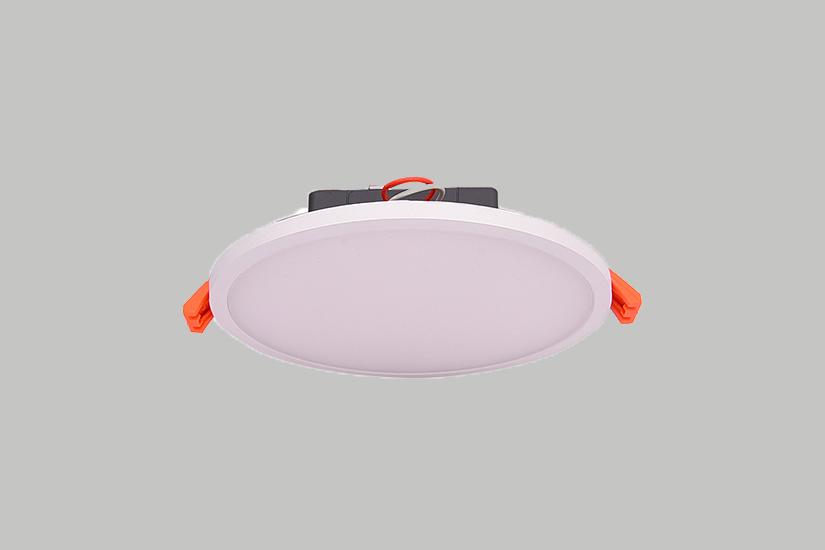

Recessed panel downlighter, round; LED with low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system
Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h,
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
VARIANTS
Product Code |
Watts |
Dia. |
Cut out Dia. |
Height |
Efficiency |
Color Temperature |
CLS-8-RM-RD-DL-LED |
8W |
90 mm |
75 mm |
40mm |
3000 K - 85 Lm / W | 4000 K - 95 Lm / W | 6000 K - 100 Lm / W |
830 | 840 | 860 |
CLS-12-RM-RD-DL-LED |
12W |
120mm |
105mm |
40mm |
||
CLS-15-RM-RD-DL-LED |
15W |
150mm |
135mm |
40mm |
||
CLS-18-RM-RD-DL-LED |
18W |
150mm |
135mm |
40mm |
||
CLS-24-RM-RD-DL-LED |
24W |
170mm |
155mm |
40mm |
