Luminaire type

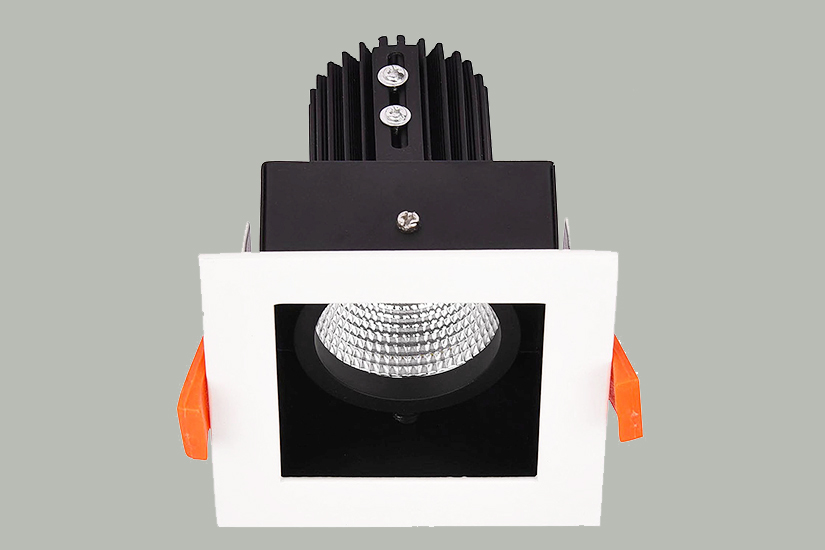

Adjustable spotlight, recessed – Modular; Citizen / Osram COB with low THD (<10%) LED Philips / BAG/ Fulham electronic driver. IP 20, deformed metal housing with metal frame and aluminum heat sink.
Applications
Accent/Shop Lighting, Hospitality, Reception, Foyers, Lobbies, Corridors, Halls and Restaurants.
Mounting methods
Recessed spotlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 14, 24, 36 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Deformed Metal Housing with Metal Frame, Aluminum Heat Sink for optimum heat dissipation; IP 20. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
VARIANTS
Product Code |
Watts |
Length X Width |
Cut out size |
Efficiency |
Color Temperature |
CLS-1X12W-GC-DL-SQ |
12W |
95mmX95mm |
80mmX80mm |
3000 K - 110 Lm / W | 4000 K - 120 Lm / W | 6000 K - 125 Lm / W
|
830 | 840 | 860
|
CLS-1X18W-GC-DL-SQ |
18 W |
||||
CLS-1X24W-GC-DL-SQ |
24 W |
||||
CLS-2X12W-GC-DL-SQ |
24W |
170mmX95mm |
140mmX78mm |
||
CLS-2X18W-GC-DL-SQ |
36W |
||||
CLS-2X24W-GC-DL-SQ |
48W |
||||
CLS-3X12W-GC-DL-SQ |
36W |
265mmX95mm |
225mmX80mm |
||
CLS-3X18W-GC-DL-SQ |
54W |
||||
CLS-3X24W-GC-DL-SQ |
72W |
||||
CLS-4X12W-GC-DL-SQ |
48W |
170mmX170mm |
140mmX140mm |
||
CLS-4X18W-G-DL-SQ |
72W |
||||
CLS-4X24W-G-DL-SQ |
96W |
